Morse Taper Cutter for Sherline Lathes

-This is a low budget version of the LASER protractor and uses a pointer rod instead of a LASER pointer-


[ Project examples ] - pdf
[ Your savings ] - HTML [ Frequently asked questions ] - HTML
Please read the safety notes before using any accessories:
[ Safety Booklet ]-pdf [ Safety ]-HTML
[ Customer feedback ] [ What is your opinion? ]


PayPal

Solution Graphics


Project Example: Morse #0 taper blanks are the starting point for many accessories.

What does this tool do? One can cut Morse Taper and Morse arbors easily even on a small home shop lathe. Since labor costs are not an issue for hobby type work, you can make these accessories by yourself for close to zero dollars. All you need to do is setting the cutting angle precisely enough. Our mechanical protractor is exactly doing this for you, making the entire process a piece of cake. Cutting a perfectly fitting Morse taper takes 5 min / piece. Actually, we are crazy offering this kind of tool. [ Does this tool work for my lathe? ] - pdf
Sure one can cut any small angle taper: Jacobs, Jarno, Morse, etc.


Project Example: Center drill -
Morse Adapters.
Also available for [ UNIMAT ] or 3536 HiTorque Bench lathe / SIEG lathe [ contact ].

Mechanical Protractor for 17" or 8" Sherline lathes.
Interested in a UNIMAT version? [ contact ]

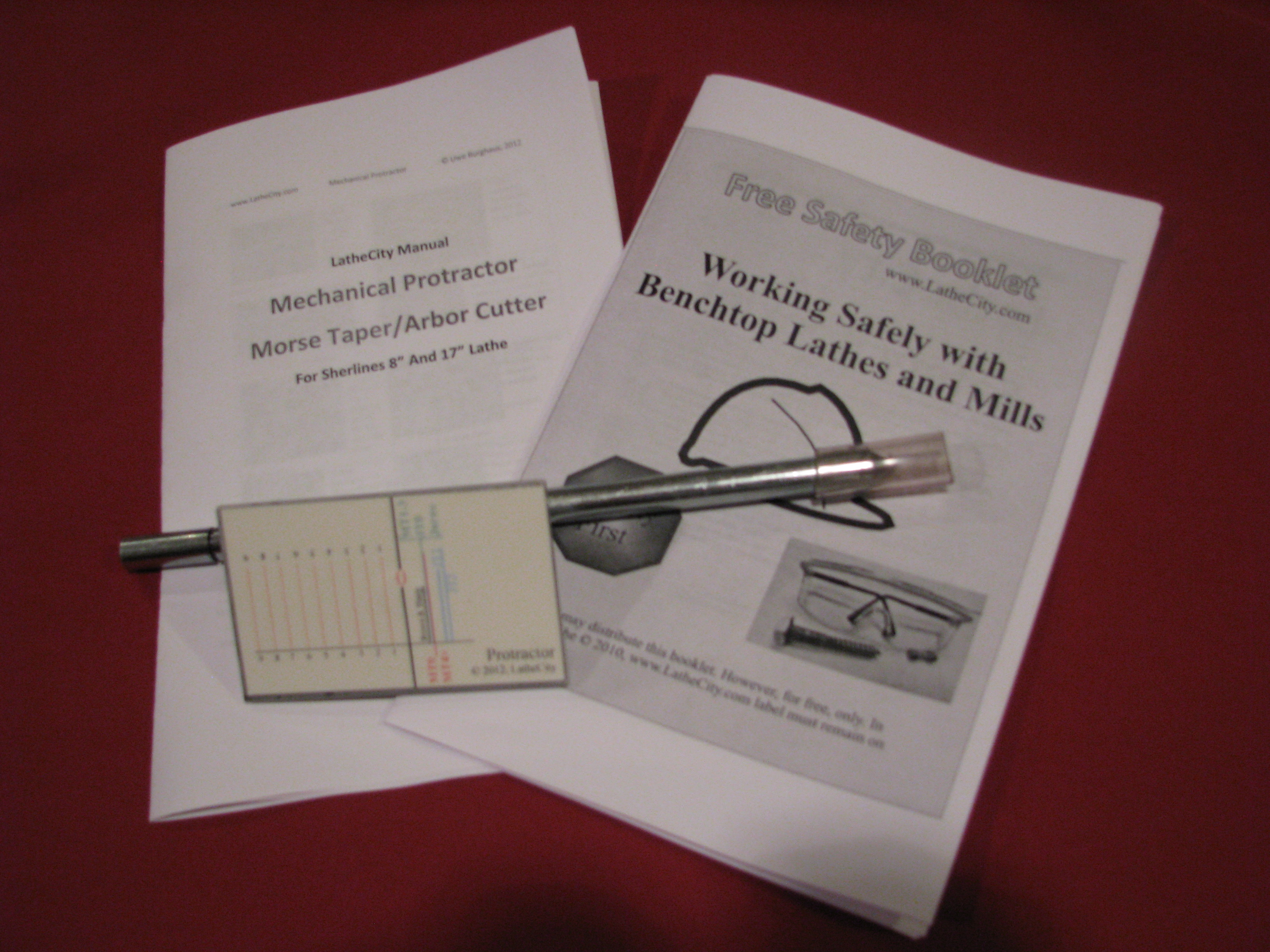

Included are:

  • Manual - booklet size, 15 pages
  • Safety booklet - booklet size, 12 pages
  • Angle pointer
  • Angle scale for 17" and 8" Sherline lathe - (color paper scale glued on aluminum plate and covered with a protective plastic foil)
  • Morse #0 taper for mounting the scale in the tailstock - aluminum



What is the difference between the LASER protractor and this mechanical protractor? Both allow for cutting machine taper. However, the LASER protractor is significantly more precise than the mechanical protractor. [ FAQ ]













$30
+$2.50 shipping within the US

International customres incl. Canada do NOT push this button, but contact us in advance to figure the shipping costs.

Further accessories for your Protractor / Taper Cutter

Steel Test Arbor Set
Morse #0 Arbor and Morse #1 Arbor

Reduced length (approx. 1"), steel
$19.99

International customres incl. Canada do NOT push this button, but contact us in advance to figure the shipping costs.

Plastic Morse #0 Test Arbor
If you machine your own Morse adapters an arbor for test fitting the pieces properly is essential. The piece is cut in transparent plastic using reamer. Thus, one can perfectly see if the Morse taper fits.
One of these is included in the LASER protractor package.

$9.99

A0012
International customres incl. Canada do NOT push this button, but contact us in advance to figure the shipping costs.

Steel Jacobs #1 Test Arbor
(apparently common on older UK lathes)
(standard length, approx. 0.6")

$10.00

International customres incl. Canada do NOT push this button, but contact us in advance to figure the shipping costs.

Adjustable Tailstock Center
(Morse #0 taper to dead center)
Cutting taper in longer and/or larger diameter stock without a center is dangerous and basically impossible. This adjustable tailstock center compensates for the offset when cutting taper by rotating the headstock. Details & images --> [ manual new design ] [ old design manual ]

$59.00 (Shipps priority mail for +$5)




A0020

Custom designs

Other sizes of test arbors available on request. We enjoy making unusual stuff - try us.


Further project examples: pieces cut using the protractor.

Our protractor allows for cutting any machine taper and arbor.


Example: Jacobs drill chuck adapters

Example: Morse Arbor-Taper adapters. Super expensive reamer are not required to cut Morse arbors.

Example: center drill Morse #0 adapters.

Example: Specialty adapters with a Morse taper end.


Example: Morse #0 and Morse #1 arbors and dead centers.


Customer projects: we would love it to see your own projects. If you like, e-mail an image to us. If you agree we would put it up at our website, but no compensations.

Example: Morse taper #0, #1, #2. Cutting larger size Morse tapers is actually simpler on a smaller benchtop lathe than on a full size system.
